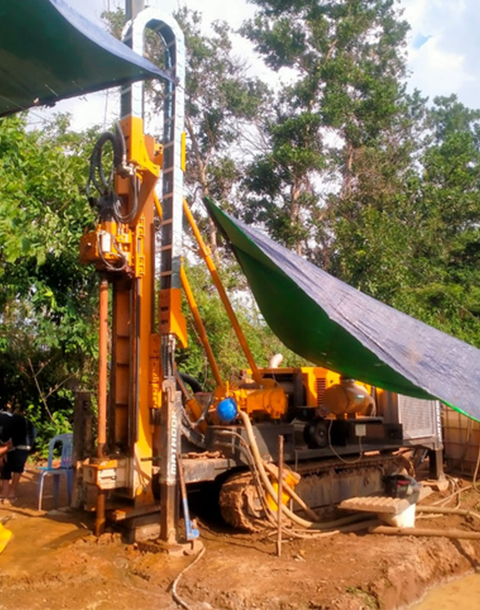

The YG water well drilling rig is engineered for efficient and reliable drilling operations. Equipped with a powerful diesel engine and advanced hydraulic system, it ensures strong penetration, smooth operation, and high working efficiency.This rig is highly adaptable to different geological conditions, including soil, sand, gravel, and hard rock formations. With flexible drill pipe configurations and strong lifting capacity, it can handle various drilling requirements with ease.Widely used in water well construction, agricultural irrigation, industrial water extraction, and geothermal projects, the YG drilling rig provides a dependable solution for both small and large-scale operations.

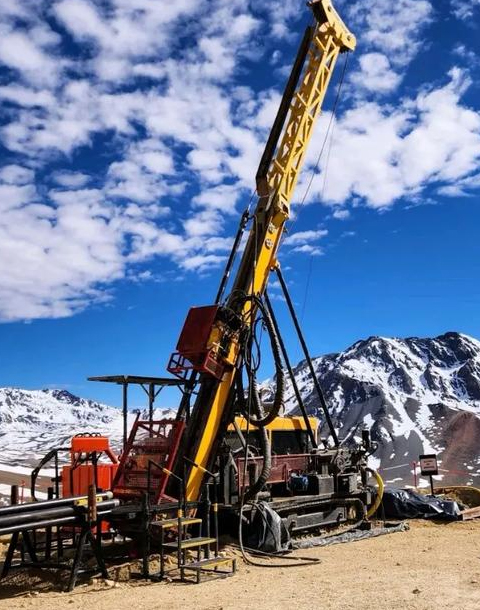

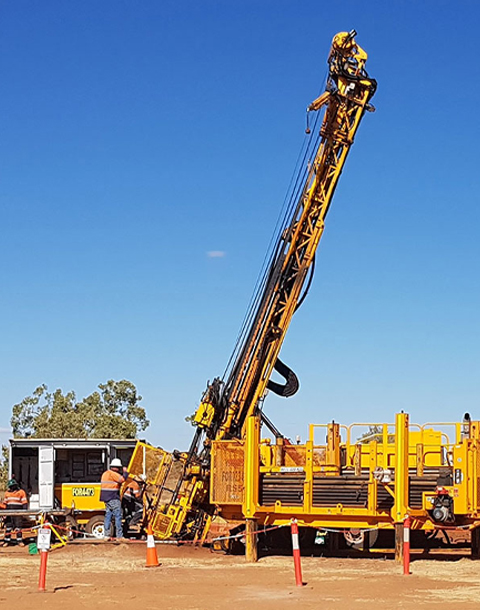

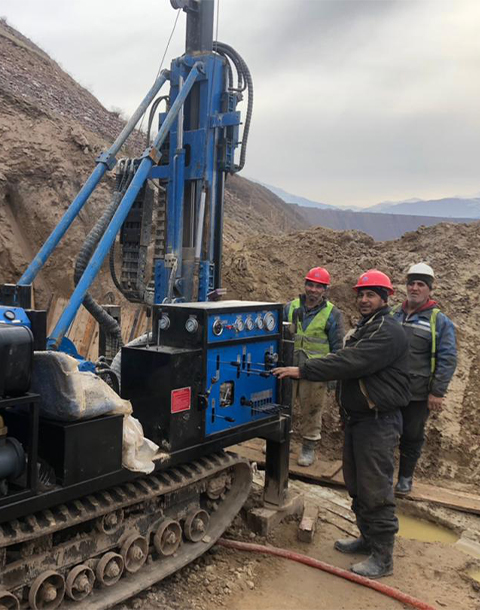

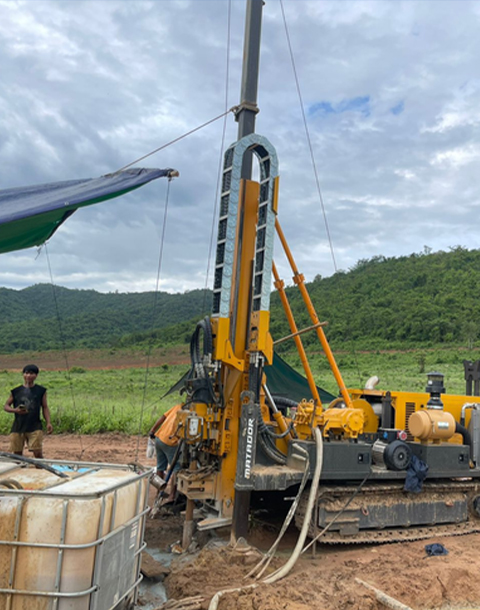

The YG fully hydraulic core drilling rig is designed for deep hole drilling and geological exploration. Equipped with a full hydraulic drive system, it ensures smooth operation, high drilling efficiency, and reduced labor intensity.With a compact structure and strong adaptability, the rig performs excellently in complex terrains such as mountains, rock formations, and remote areas.It is widely used in mineral exploration, water well drilling, engineering investigation, and environmental monitoring projects.
The YG fully hydraulic core drilling rig is designed for deep hole drilling and geological exploration. Equipped with a full hydraulic drive system, it ensures smooth operation, high drilling efficiency, and reduced labor intensity.
With a compact structure and strong adaptability, the rig performs excellently in complex terrains such as mountains, rock formations, and remote areas.
It is widely used in mineral exploration, water well drilling, engineering investigation, and environmental monitoring projects.
The YG fully hydraulic core drilling rig is designed for deep hole drilling and geological exploration. Equipped with a full hydraulic drive system, it ensures smooth operation, high drilling efficiency, and reduced labor intensity.
With a compact structure and strong adaptability, the rig performs excellently in complex terrains such as mountains, rock formations, and remote areas.
It is widely used in mineral exploration, water well drilling, engineering investigation, and environmental monitoring projects.
| Model | YG - 400D | YG - 600D | YG - 800D |
| Max. Drilling Depth (m) | 400 | 600 | 800 |
| Drilling Diameter (mm) | 55–168 | 55–168 | 55–168 |
| Core Diameter (mm) | 48–150 | 48–150 | 48–150 |
| Drill Pipe Length (m) | 2 | 2 | 2 |
| Drilling Angle | 45–90° | 45–90° | 45–90° |
| Diesel Engine Power (kW) | 91 | 92 | 92 |
| Power Head Speed (rpm) | 100–1100 | 100–1100 | 100–1300 |
| Power Head Torque (N.m) | 280–2100 | 280–2400 | 280–2800 |
| Total Weight (t) | 4.1 | 5.5 | 7.5 |
| Dimensions (m) | 3.6×1.5×1.8 | 3.6×1.8×2.1 | 3.8×2×2.5 |
